集群监控与 debug
一. Kubernetes 监控
1.1 Metrics Server
Metrics Server 是 Kubernetes 提供的监控工具，主要用来收集 Node 和 Pod 的 CPU、内存使用情况。其本质就是通过 kube-aggregator 实现的一个 server。
图片来自 https://www.jetstack.io/blog/resource-and-custom-metrics-hpa-v2/
Kubelet 内置了 cAdvisor 服务运行在每个节点上收集容器的各种资源信息，并对外提供了 API 来查询这些信息。Metric Server 正是访问 Kubelet 提供的 /stats/summary API 来获取监控数据，只要有这个 API 其实我们完全可以自行实现一个 Kubernetes 指标收集工具。
可以通过下面命令安装 MetricServer
$ kubectl apply -f https://github.com/kubernetes-sigs/metrics-server/releases/latest/download/components.yaml
安装完成后就可以通过 kubectl top 命令查看 Pod 和 Node 的资源使用信息了。
$ kubectl top nodes
NAME CPU(cores) CPU% MEMORY(bytes) MEMORY%
tk01 217m 10% 5296Mi 68%
vm-0-2-ubuntu 84m 4% 1189Mi 32%
$ kubectl top pods --all-namespaces
NAMESPACE NAME CPU(cores) MEMORY(bytes)
kube-system coredns-f9fd979d6-jzv8q 4m 10Mi
kube-system coredns-f9fd979d6-tx9m4 4m 10Mi
kube-system etcd-tk01 14m 50Mi
kube-system kube-apiserver-tk01 31m 293Mi
1.2 Prometheus

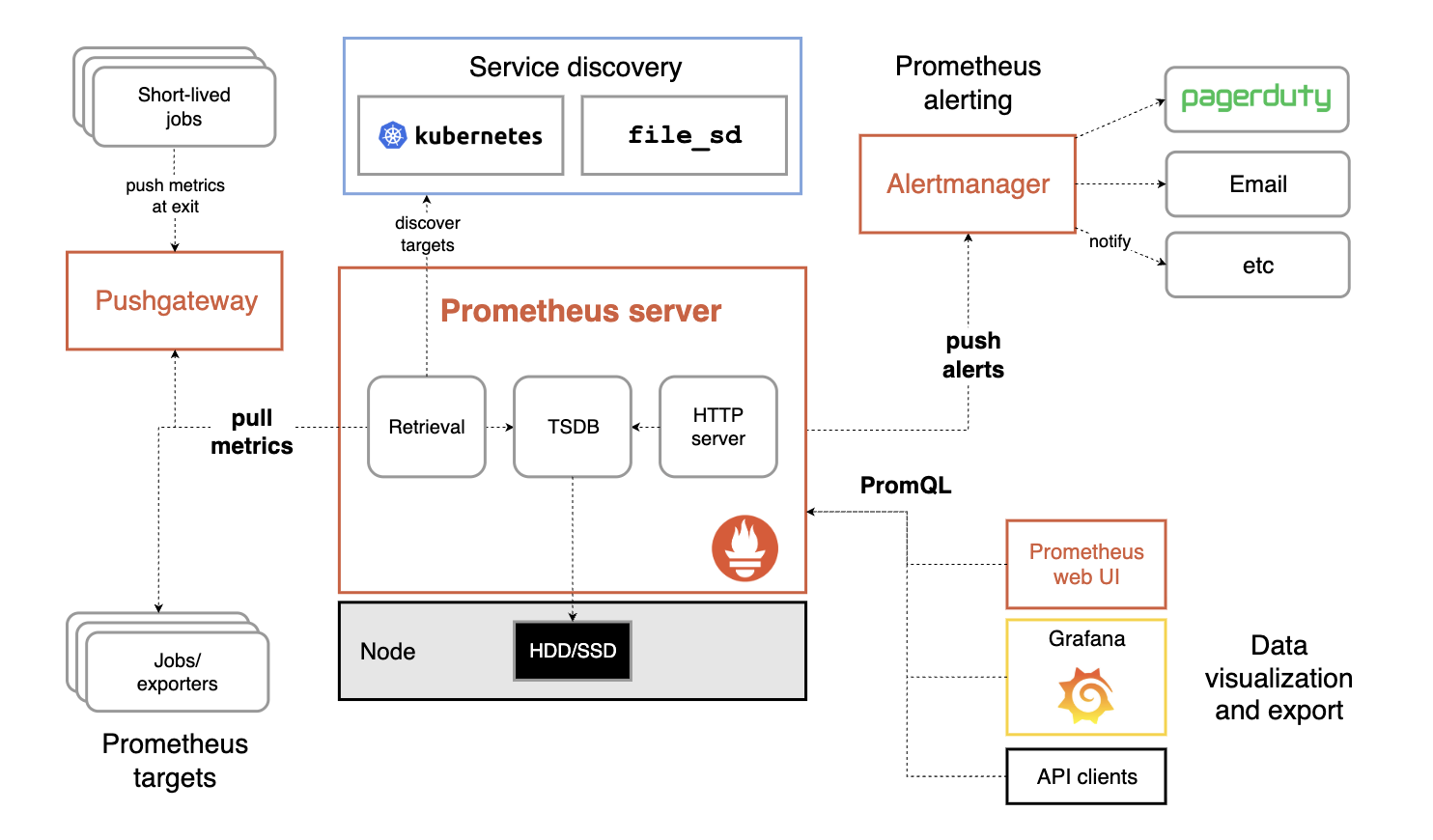

Prometheus 是 CNCF 的第二个毕业项目，目前已经是 Kubernetes 监控方面的事实标准。架构如图：
Prometheus 提供了若干组件来完成数据的收集、存储、展示与告警等：
数据收集组件：Prometheus 采用 pull 的模式定期从各个目标收集数据。对于应用指标收集，应用只需要提供一个类似
/metrics接口供 Prometheus 访问即可，对于中间件、系统的监控，由官方和社区维护了一系列的 Exporter 来实现数据的收集。对于某些短时任务可以通过 pushGateway 来实现，先将任务的指标收集到 gateway，在被 pull 到 Prometheus 。Prometheus Server: 存储数据，Prometheus 内置的时序数据库，也可以使用外部的 InfluxDB 等其他存储。
AlertManager: 告警组件，可以根据一系列规则实现及时的告警。
数据展示组件：Prometheus 本身提供了 API 供外部查询各种指标，同时也内置了 UI 界面实现可视化查询与展示，另外比较常用的是结合 Grafana 实现数据的可视化。
就 Kuberetes 而言，需要监控数据大致分为三种:
主机指标：Kubernetes 各个宿主机节点的指标，由 Node Exporter 提供。
组件指标：Kuberetes 各个组件的指标，比如 api-server、kubelet 等组件的指标，这个由各个组件的
/metricsAPI 提供。核心指标： Kubernetes 中各种资源对象的数据，比如 Pod 、Node、容器的各种指标，NameSpace、Deployment 、Service 等各种资源的信息。
下面是部署 Prometheus 并查看监控的一个示例，目前在 Kuberetes 中有三种方式安装 Prometheus:
- Prometheus-operator
- 社区提供的 Helm Chart
- Kube-prometheus：在 Prometheus-operator 的基础之上做的进一步开发。
prometheus-operator 和 kube-prometheus 的关系有点像 Linux 内核和 Ubuntu 发行版的关系，后者提供了更全面的工具和环境。这里我们就使用 Kube-prometheus 部署
$ git clone https://github.com/prometheus-operator/kube-prometheus.git
Cloning into 'kube-prometheus'...
remote: Enumerating objects: 21595, done.
remote: Counting objects: 100% (5701/5701), done.
remote: Compressing objects: 100% (365/365), done.
remote: Total 21595 (delta 5563), reused 5343 (delta 5335), pack-reused 15894 (from 4)
Receiving objects: 100% (21595/21595), 13.85 MiB | 15.10 MiB/s, done.
Resolving deltas: 100% (15022/15022), done.
$ cd kube-prometheus
$ kubectl create -f manifests/setup
customresourcedefinition.apiextensions.k8s.io/alertmanagerconfigs.monitoring.coreos.com created
customresourcedefinition.apiextensions.k8s.io/alertmanagers.monitoring.coreos.com created
customresourcedefinition.apiextensions.k8s.io/podmonitors.monitoring.coreos.com created
customresourcedefinition.apiextensions.k8s.io/probes.monitoring.coreos.com created
customresourcedefinition.apiextensions.k8s.io/prometheuses.monitoring.coreos.com created
customresourcedefinition.apiextensions.k8s.io/prometheusagents.monitoring.coreos.com created
customresourcedefinition.apiextensions.k8s.io/prometheusrules.monitoring.coreos.com created
customresourcedefinition.apiextensions.k8s.io/scrapeconfigs.monitoring.coreos.com created
customresourcedefinition.apiextensions.k8s.io/servicemonitors.monitoring.coreos.com created
customresourcedefinition.apiextensions.k8s.io/thanosrulers.monitoring.coreos.com created
namespace/monitoring created
$ kubectl create -f manifests/
alertmanager.monitoring.coreos.com/main created
networkpolicy.networking.k8s.io/alertmanager-main created
poddisruptionbudget.policy/alertmanager-main created
prometheusrule.monitoring.coreos.com/alertmanager-main-rules created
secret/alertmanager-main created
service/alertmanager-main created
serviceaccount/alertmanager-main created
servicemonitor.monitoring.coreos.com/alertmanager-main created
clusterrole.rbac.authorization.k8s.io/blackbox-exporter created
clusterrolebinding.rbac.authorization.k8s.io/blackbox-exporter created
configmap/blackbox-exporter-configuration created
deployment.apps/blackbox-exporter created
networkpolicy.networking.k8s.io/blackbox-exporter created
service/blackbox-exporter created
serviceaccount/blackbox-exporter created
servicemonitor.monitoring.coreos.com/blackbox-exporter created
secret/grafana-config created
secret/grafana-datasources created
configmap/grafana-dashboard-alertmanager-overview created
configmap/grafana-dashboard-apiserver created
configmap/grafana-dashboard-cluster-total created
configmap/grafana-dashboard-controller-manager created
configmap/grafana-dashboard-grafana-overview created
configmap/grafana-dashboard-k8s-resources-cluster created
configmap/grafana-dashboard-k8s-resources-multicluster created
configmap/grafana-dashboard-k8s-resources-namespace created
configmap/grafana-dashboard-k8s-resources-node created
configmap/grafana-dashboard-k8s-resources-pod created
configmap/grafana-dashboard-k8s-resources-windows-cluster created
configmap/grafana-dashboard-k8s-resources-windows-namespace created
configmap/grafana-dashboard-k8s-resources-windows-pod created
configmap/grafana-dashboard-k8s-resources-workload created
configmap/grafana-dashboard-k8s-resources-workloads-namespace created
configmap/grafana-dashboard-k8s-windows-cluster-rsrc-use created
configmap/grafana-dashboard-k8s-windows-node-rsrc-use created
configmap/grafana-dashboard-kubelet created
configmap/grafana-dashboard-namespace-by-pod created
configmap/grafana-dashboard-namespace-by-workload created
configmap/grafana-dashboard-node-cluster-rsrc-use created
configmap/grafana-dashboard-node-rsrc-use created
configmap/grafana-dashboard-nodes-aix created
configmap/grafana-dashboard-nodes-darwin created
configmap/grafana-dashboard-nodes created
configmap/grafana-dashboard-persistentvolumesusage created
configmap/grafana-dashboard-pod-total created
configmap/grafana-dashboard-prometheus-remote-write created
configmap/grafana-dashboard-prometheus created
configmap/grafana-dashboard-proxy created
configmap/grafana-dashboard-scheduler created
configmap/grafana-dashboard-workload-total created
configmap/grafana-dashboards created
deployment.apps/grafana created
networkpolicy.networking.k8s.io/grafana created
prometheusrule.monitoring.coreos.com/grafana-rules created
service/grafana created
serviceaccount/grafana created
servicemonitor.monitoring.coreos.com/grafana created
prometheusrule.monitoring.coreos.com/kube-prometheus-rules created
clusterrole.rbac.authorization.k8s.io/kube-state-metrics created
clusterrolebinding.rbac.authorization.k8s.io/kube-state-metrics created
deployment.apps/kube-state-metrics created
networkpolicy.networking.k8s.io/kube-state-metrics created
prometheusrule.monitoring.coreos.com/kube-state-metrics-rules created
service/kube-state-metrics created
serviceaccount/kube-state-metrics created
servicemonitor.monitoring.coreos.com/kube-state-metrics created
prometheusrule.monitoring.coreos.com/kubernetes-monitoring-rules created
servicemonitor.monitoring.coreos.com/kube-apiserver created
servicemonitor.monitoring.coreos.com/coredns created
servicemonitor.monitoring.coreos.com/kube-controller-manager created
servicemonitor.monitoring.coreos.com/kube-scheduler created
servicemonitor.monitoring.coreos.com/kubelet created
clusterrole.rbac.authorization.k8s.io/node-exporter created
clusterrolebinding.rbac.authorization.k8s.io/node-exporter created
daemonset.apps/node-exporter created
networkpolicy.networking.k8s.io/node-exporter created
prometheusrule.monitoring.coreos.com/node-exporter-rules created
service/node-exporter created
serviceaccount/node-exporter created
servicemonitor.monitoring.coreos.com/node-exporter created
clusterrole.rbac.authorization.k8s.io/prometheus-k8s created
clusterrolebinding.rbac.authorization.k8s.io/prometheus-k8s created
networkpolicy.networking.k8s.io/prometheus-k8s created
poddisruptionbudget.policy/prometheus-k8s created
prometheus.monitoring.coreos.com/k8s created
prometheusrule.monitoring.coreos.com/prometheus-k8s-prometheus-rules created
rolebinding.rbac.authorization.k8s.io/prometheus-k8s-config created
rolebinding.rbac.authorization.k8s.io/prometheus-k8s created
rolebinding.rbac.authorization.k8s.io/prometheus-k8s created
rolebinding.rbac.authorization.k8s.io/prometheus-k8s created
role.rbac.authorization.k8s.io/prometheus-k8s-config created
role.rbac.authorization.k8s.io/prometheus-k8s created
role.rbac.authorization.k8s.io/prometheus-k8s created
role.rbac.authorization.k8s.io/prometheus-k8s created
service/prometheus-k8s created
serviceaccount/prometheus-k8s created
servicemonitor.monitoring.coreos.com/prometheus-k8s created
apiservice.apiregistration.k8s.io/v1beta1.metrics.k8s.io created
clusterrole.rbac.authorization.k8s.io/prometheus-adapter created
clusterrole.rbac.authorization.k8s.io/system:aggregated-metrics-reader created
clusterrolebinding.rbac.authorization.k8s.io/prometheus-adapter created
clusterrolebinding.rbac.authorization.k8s.io/resource-metrics:system:auth-delegator created
clusterrole.rbac.authorization.k8s.io/resource-metrics-server-resources created
configmap/adapter-config created
deployment.apps/prometheus-adapter created
networkpolicy.networking.k8s.io/prometheus-adapter created
poddisruptionbudget.policy/prometheus-adapter created
rolebinding.rbac.authorization.k8s.io/resource-metrics-auth-reader created
service/prometheus-adapter created
serviceaccount/prometheus-adapter created
servicemonitor.monitoring.coreos.com/prometheus-adapter created
clusterrole.rbac.authorization.k8s.io/prometheus-operator created
clusterrolebinding.rbac.authorization.k8s.io/prometheus-operator created
deployment.apps/prometheus-operator created
networkpolicy.networking.k8s.io/prometheus-operator created
prometheusrule.monitoring.coreos.com/prometheus-operator-rules created
service/prometheus-operator created
serviceaccount/prometheus-operator created
servicemonitor.monitoring.coreos.com/prometheus-operator created
完成后会有一个新的 monitoring namespace，相关服务都运行在该命名空间下。我们可以看到 Prometheus 相关的组件：
$ kubectl get pods -n monitoring
NAME READY STATUS RESTARTS AGE
alertmanager-main-0 2/2 Running 0 5m59s
alertmanager-main-1 2/2 Running 0 5m58s
alertmanager-main-2 2/2 Running 0 5m58s
blackbox-exporter-6d86f57b57-mr9d5 3/3 Running 0 6m55s
grafana-7c68d76c67-tzfx6 1/1 Running 0 6m52s
kube-state-metrics-c66bdcf9c-pf8fg 3/3 Running 0 6m52s
node-exporter-cn8gv 2/2 Running 0 6m51s
node-exporter-cwlhw 2/2 Running 0 6m51s
node-exporter-v66dz 2/2 Running 0 6m51s
prometheus-adapter-599c88b6c4-ccmbc 1/1 Running 0 6m50s
prometheus-adapter-599c88b6c4-hjscg 1/1 Running 0 6m50s
prometheus-k8s-0 2/2 Running 0 5m58s
prometheus-k8s-1 2/2 Running 0 5m58s
prometheus-operator-7c7bf54bdd-8vv6m 2/2 Running 0 6m50s
$ kubectl get svc -n monitoring
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
alertmanager-main ClusterIP 10.233.44.102 <none> 9093/TCP,8080/TCP 7m17s
alertmanager-operated ClusterIP None <none> 9093/TCP,9094/TCP,9094/UDP 6m20s
blackbox-exporter ClusterIP 10.233.33.190 <none> 9115/TCP,19115/TCP 7m16s
grafana ClusterIP 10.233.41.248 <none> 3000/TCP 7m14s
kube-state-metrics ClusterIP None <none> 8443/TCP,9443/TCP 7m13s
node-exporter ClusterIP None <none> 9100/TCP 7m12s
prometheus-adapter ClusterIP 10.233.1.147 <none> 443/TCP 7m11s
prometheus-k8s ClusterIP 10.233.49.86 <none> 9090/TCP,8080/TCP 7m12s
prometheus-operated ClusterIP None <none> 9090/TCP 6m19s
prometheus-operator ClusterIP None <none> 8443/TCP 7m11s
可以看到 Prometheus Server、node-exporter、grafana、Alertmanager 等组件都已经部署好了，并且相关的指标收集规则和告警规则已经默认配置好了。下面是一些示例，实际生产中我们要根据实际需求对指标和告警规则做进一步梳理，以更加满足我们的需求。

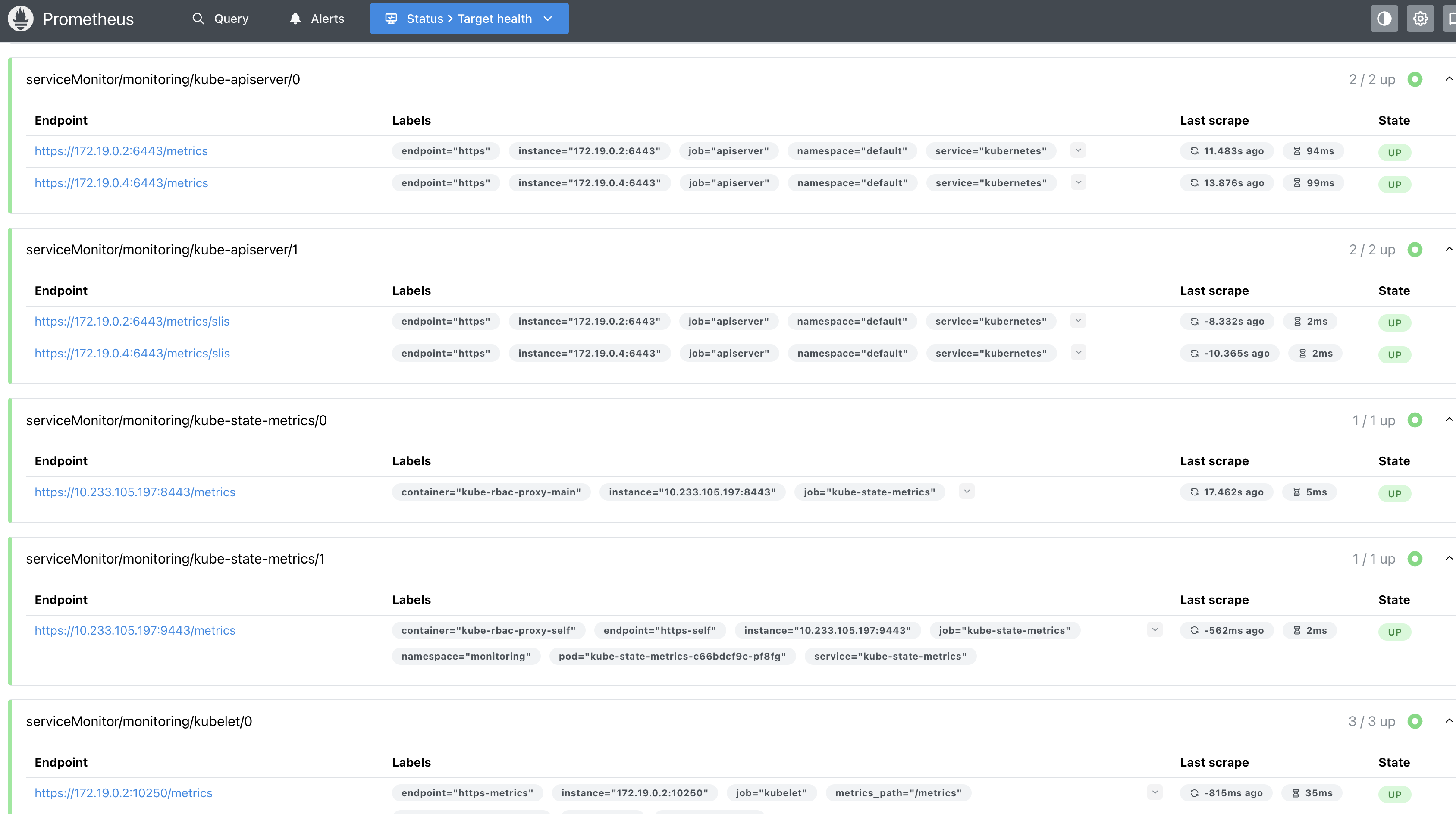

- 目标 target
表示收集目标的对象，这里是在 Kubernetes 部署后自动配置的，我们也可以在 Prometheus 文件中设置。

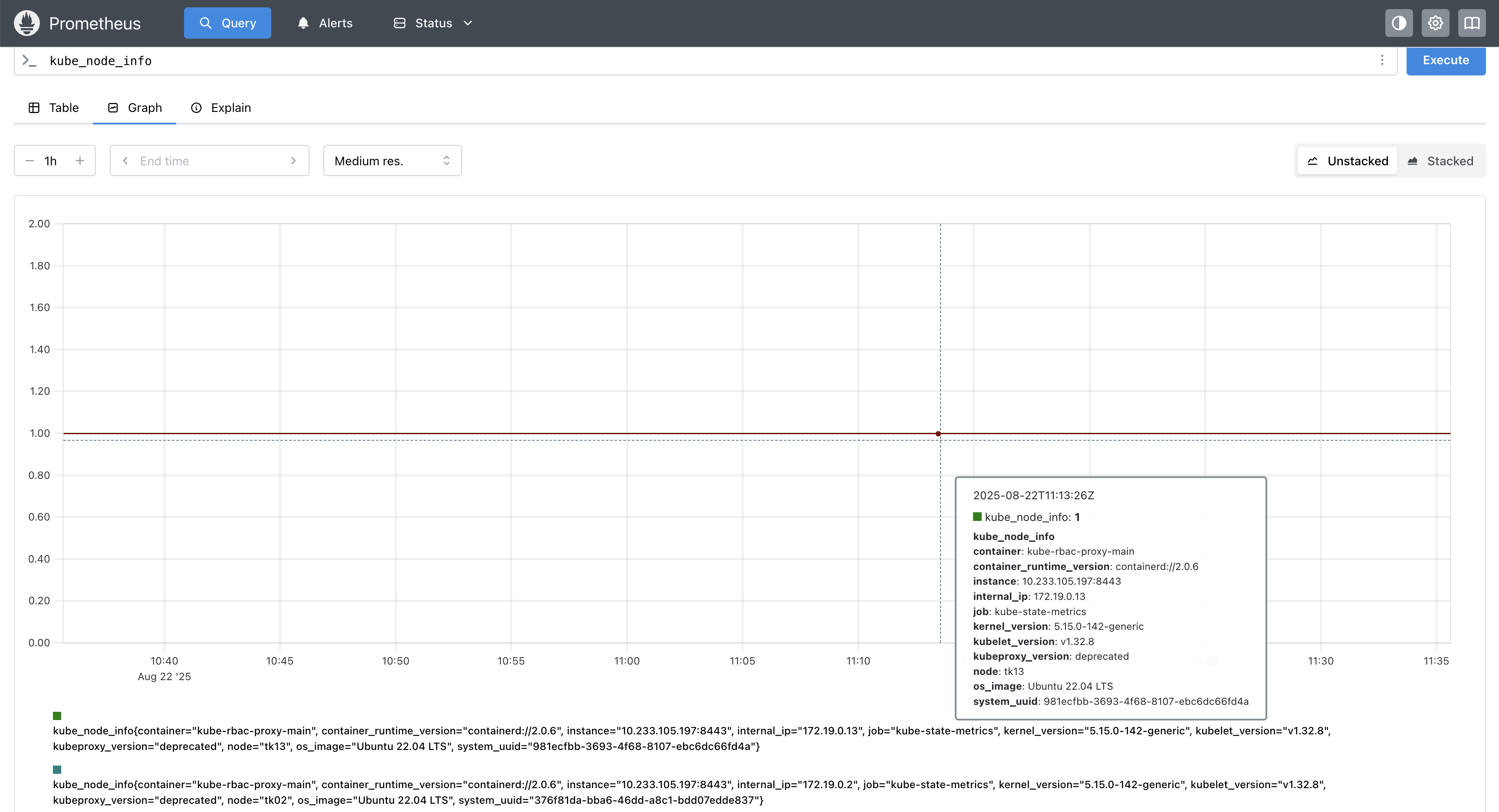

- 查询节点信息

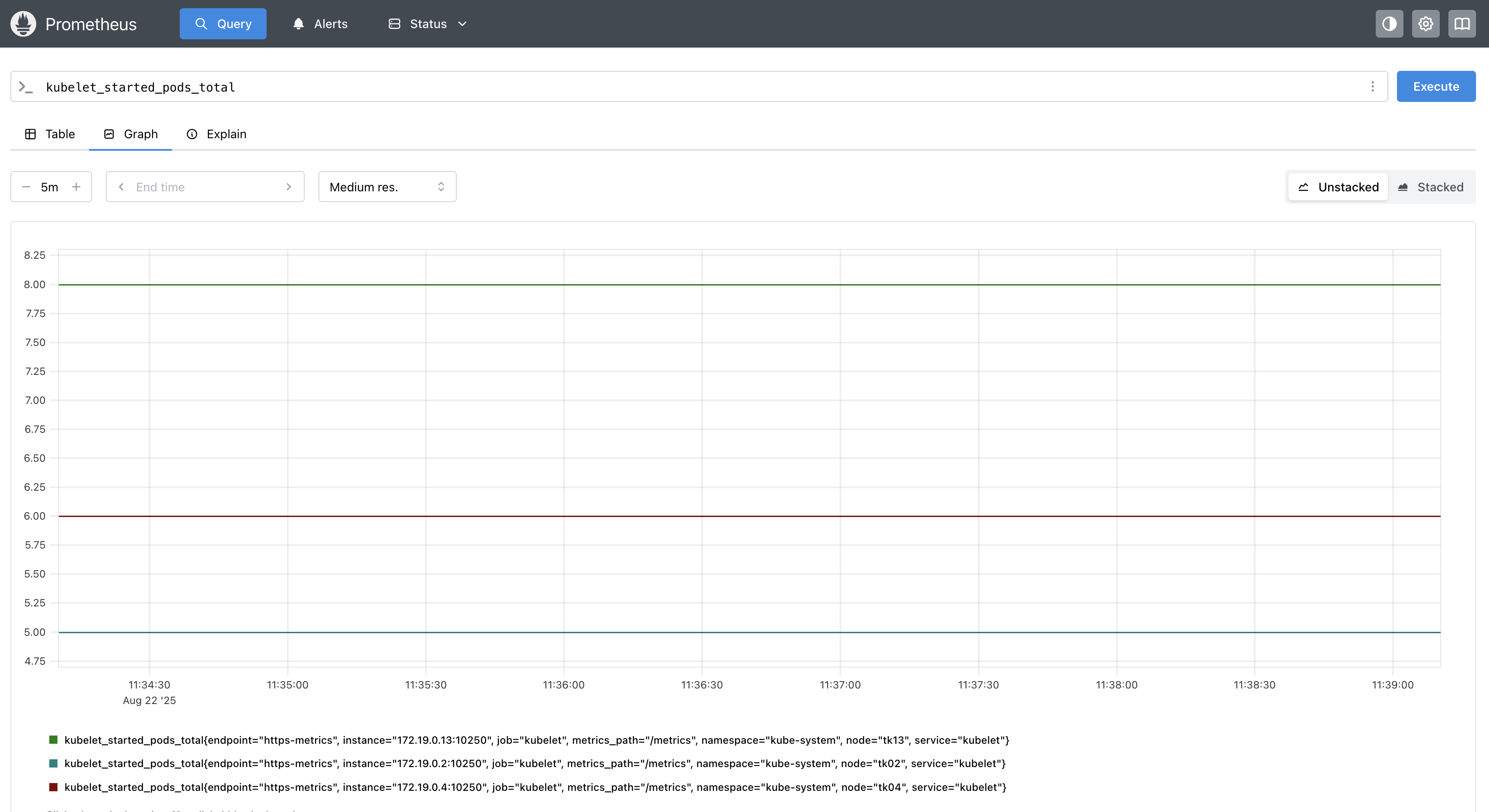

- kubelet 启动 Pod 统计
除了 Prometheus 本身的 UI，Operator 还部署了 Grafana 并自动创建了众多 Dashboard，默认用户名密码是 admin:admin，登陆进后就可以查看相关的监控指标了，下面是几个示例：

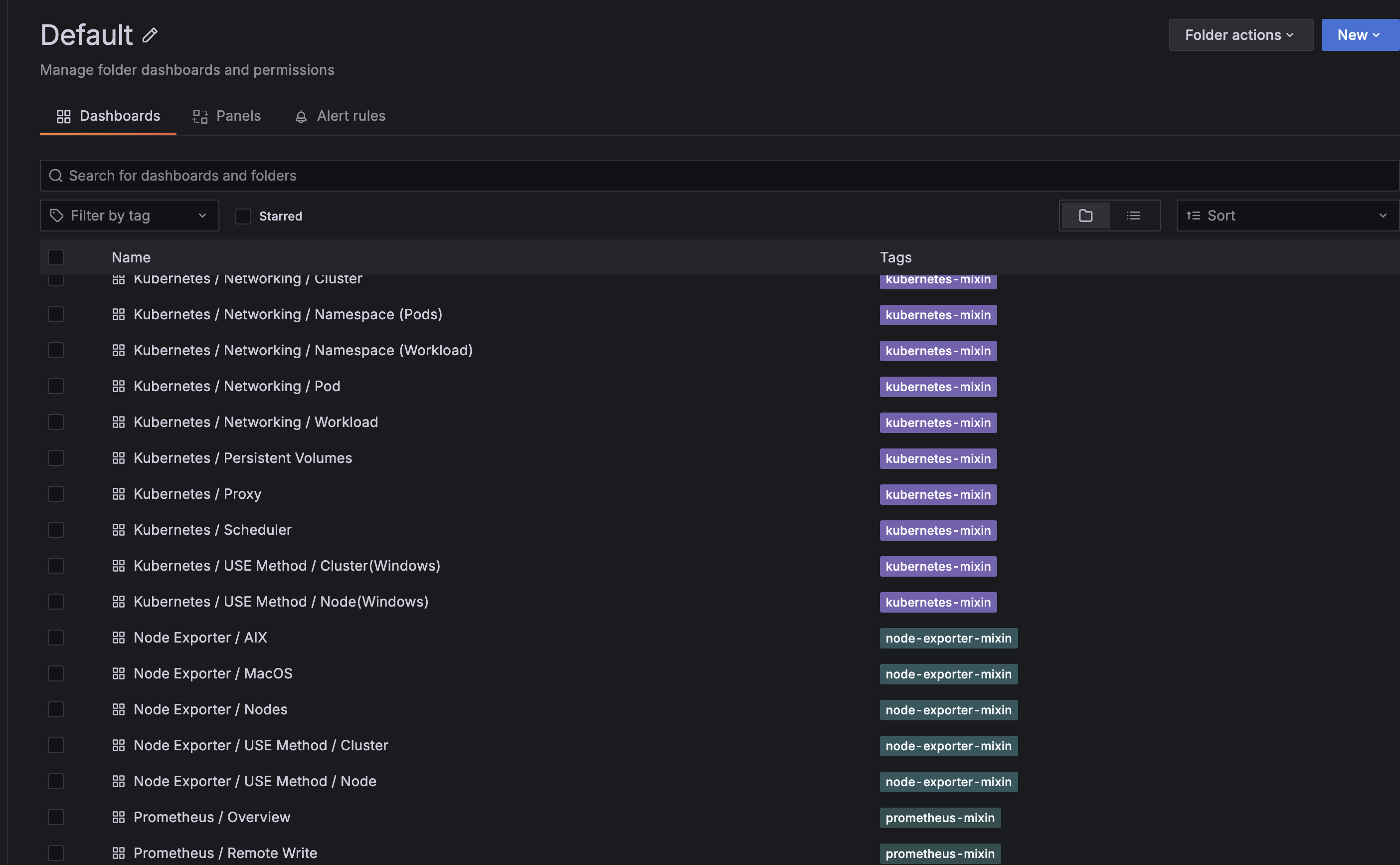

Dashboard 列表

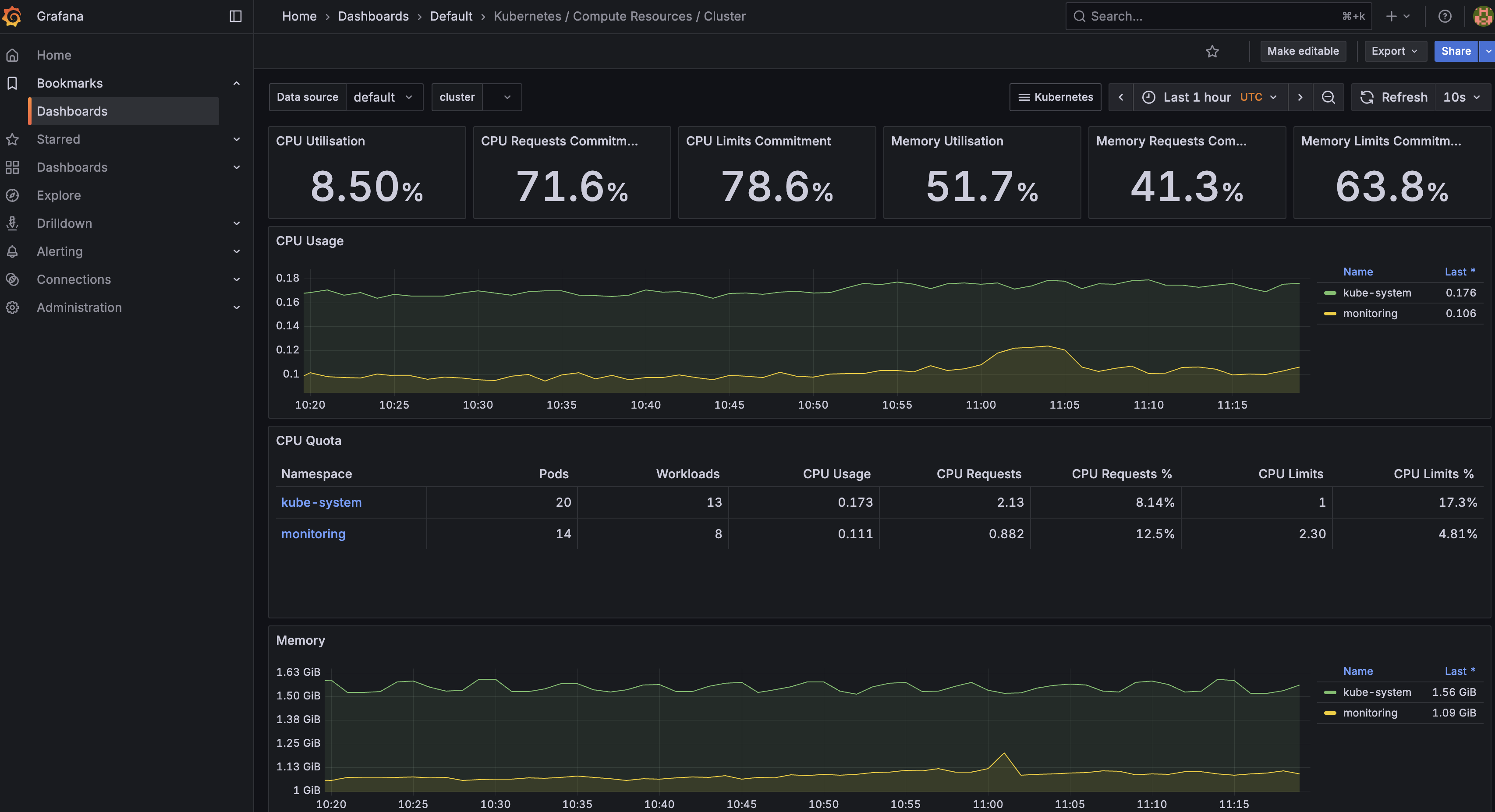

集群整体监控

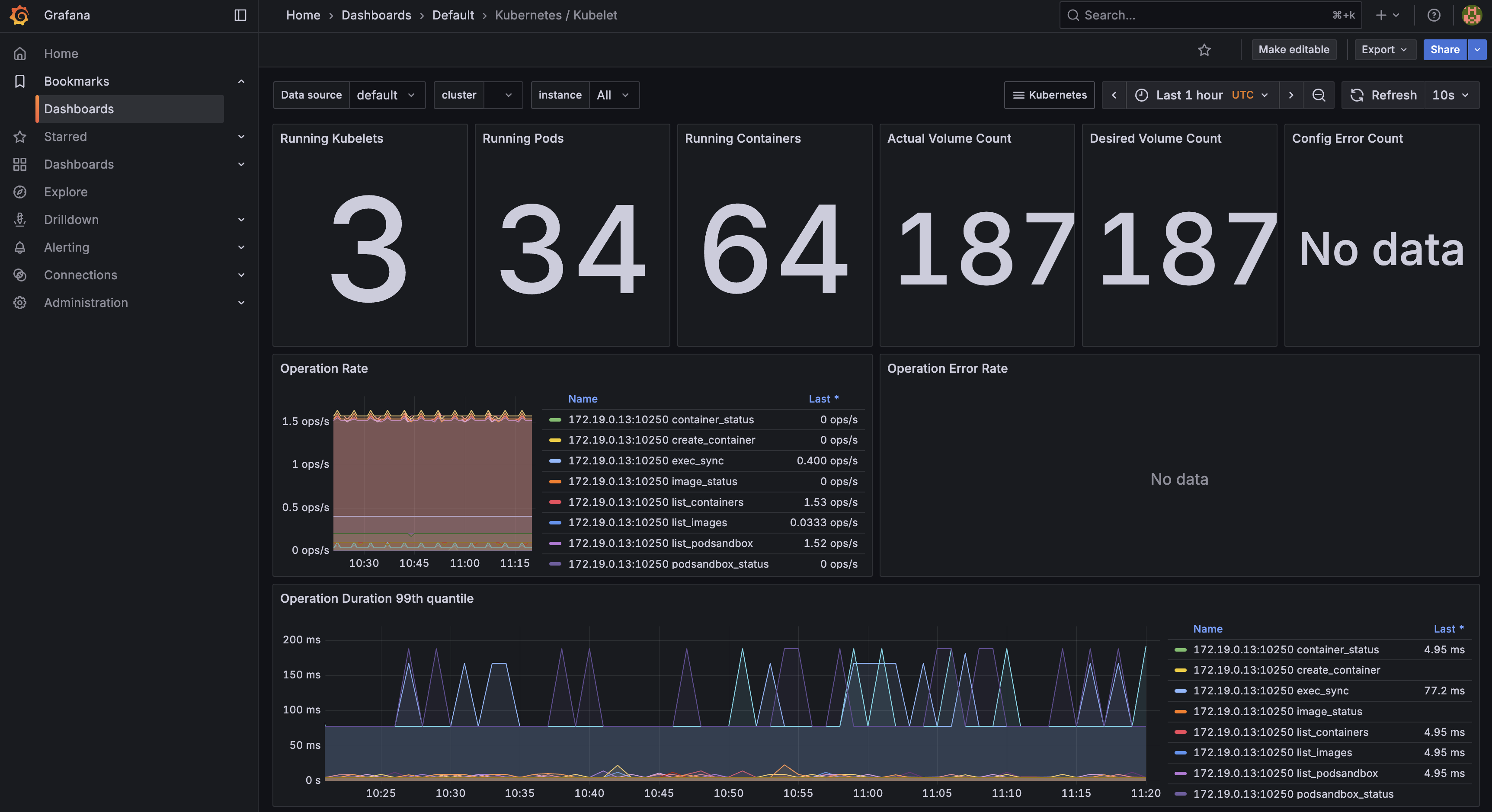

- kubelet 监控

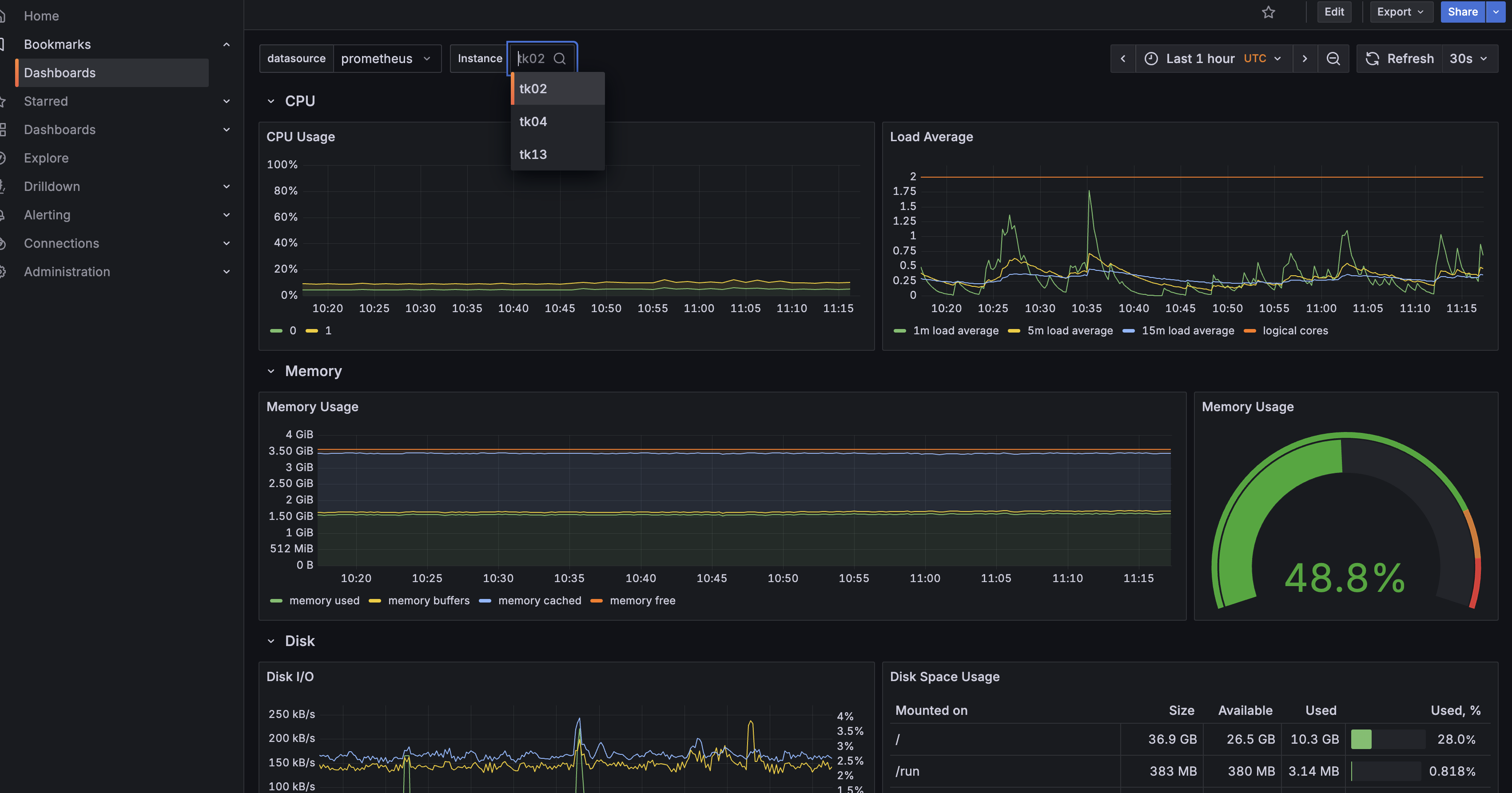

- 宿主机节点监控
二. Debug/Logging/TroubleShooting
当运行的应用出现问题时，我们需要找出问题，恢复正常运行，一般包含一些操作：
- 查看 Pod 状态以及 Spec，看是否被正确调度，Volume 挂载是否准确等。
- 查看应用本身是否正确，比如数据库配置是否正确，代码是否报错等，一般可以通过查看日志来解决，另外如果 Pod 内容器支持 debug 可以运行命令进入容器执行 debug。
- 查看 Service、Ingress 等配置是否正确，保证外部请求能正确访问到应用。
另外集群的控制组件、worker node 都有可能出现问题，导致集群不可用，此时需要检查 Kubernetes 的各个组件是否正常运行。
2.1 Debug Pod/Service
首先可以通过 kubectl describe 命令和 kubectl get pod $<POD_NAME> -o yaml 命令 查看 Pod 状态或者完整的定义。
$ kubectl describe pod -n ingress-nginx ingress-nginx-controller-5fd866c9b6-qc824
Name: ingress-nginx-controller-5fd866c9b6-qc824
Namespace: ingress-nginx
Priority: 0
Node: vm-0-7-ubuntu/172.19.0.7
...
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal Pulling 28m (x73 over 7h8m) kubelet Pulling image "k8s.gcr.io/ingress-nginx/controller:v1.1.0@sha256:f766669fdcf3dc26347ed273a55e754b427eb4411ee075a53f30718b4499076a"
Normal BackOff 8m42s (x1613 over 7h7m) kubelet Back-off pulling image "k8s.gcr.io/ingress-nginx/controller:v1.1.0@sha256:f766669fdcf3dc26347ed273a55e754b427eb4411ee075a53f30718b4499076a"
Normal RELOAD 5m33s nginx-ingress-controller NGINX reload triggered due to a change in configuration
这样通过查看 Pod 的状态、Event信息可以初步了解 Pod 启动失败的原因。比如
- 如果Pod一直处于 Pending的状态，那说明Kubernetes 无法将其分配到一个节点上。一般会有以下几种情况：
- CPU/Memory 资源不足，首先确认除了master 节点外的机器资源，可以通过命令kubectl get nodes -o yaml | egrep '\sname:|cpu:|memory:'， Pod 的资源申请不能大于节点容量。或者添加一个Node，或者删除一些再需要的Pod 来释放一些资源 如果Pod 有使用 hostPort资源（即Node上实际的端口资源），这样会限制Pod能被调度到的Node节点，除非必要，请用service资源替代。
- 如果Pod一直处于waiting 的状态，那说明Pod已经被调度都某一个节点，但是无法执行成功，一般比较大的概率是镜像问题，可以检查：
- 镜像名称是否有误？版本号码是否正确
- 是否已经push到镜像仓库，可以使用
docker pull <image>来进行验证
- 如果Pod已经执行起来，但是一直crashing 或者处于不健康状态，此时可能需要通过日志或者 debug 命令来检查 Pod 中容器的运行情况。
首先可以通过 kubectl log 命令查看 Pod 某个容器的 log
kubectl logs ${POD_NAME} ${CONTAINER_NAME}
如果容器之前有crash 过，可以通过以下命令查看crash 的容器的log
kubectl logs --previous ${POD_NAME} ${CONTAINER_NAME}
如果容器镜像已经包含 debug 功能的命令，可以使用 kube exec 命令来执行：
kubectl exec ${POD_NAME} -c ${CONTAINER_NAME} -- ${CMD} ${ARG1} ${ARG2} ... ${ARGN}，例如：
kubectl exec -it cassandra -- sh
如果容器本身没有开启 debug ，可以使用SideCar 容器或者 Ephemeral 容器来定位那些运行没有包含debugging功能镜像的容器。
$ kubectl run ephemeral-demo --image=k8s.gcr.io/pause:3.1 --restart=Never
pod/ephemeral-demo created
$ kubectl exec -it ephemeral-demo -- sh
OCI runtime exec failed: exec failed: container_linux.go:380: starting container process caused: exec: "sh": executable file not found in $PATH: unknown
command terminated with exit code 126
此时执行 debug 命令会报错，因此可以使用
$ kubectl debug -it ephemeral-demo --image=busybox --target=ephemeral-demo
Defaulting debug container name to debugger-8xzrl.
If you don't see a command prompt, try pressing enter.
/ #
除了 Pod 一般还会有 Service 的调试以保证 Pod 会被访问到，对于 Service 主要就是查看 Service 资源创建成功以及 Endpoints 是否是对应的 Pod。其次可以通过 <service-name>.<namesapce-name> 来检查 Service 的 DNS 是否正确。
2.2 网络调试
除了应用本身的问题 ，Kuberetes 中网络问题算是占比较大的问题类型，但 Pod 中的容器往往都只安装了应用所需的依赖和命令，操作系统中的很多程序和命令都是没有的，比如 tcdump 、ifconfig、vim 等程序。为了方便调试网络问题社区提供了 nicolaka/netshoot 工具，其包含众多常用的网络以及相关调试命令。
下面是使用 netshoot 的一个示例，在使用我们的 EaseMesh 做灰度时，需要通过抓包检查下请求是否到了灰度应用中。
首先查看下 Pod 所在节点并找到对应的容器：
$ kubectl get pods -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
my-pod-975986b55-r66kg 2/2 Running 0 13h 10.233.68.108 node5 <none> <none>
node:➜ ~ |>docker ps [~]
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
k8s_my-pod_mesh-service_1f563154-8a25-431e-8d44-3b1e2b0aab02_0
a2ba0b7db5a5 k8s.gcr.io/pause:3.3 "/pause" 14 hours ago Up 14 hours
在对应的节点上找到已经创建的容器，因为 Kubernetes 是通过 pause 容器来创建的网络 namespaace，因此我们在 pause 容器中进行抓包操作，netshoot 提供了命令 docker run -it --net container:<container_name> nicolaka/netshoot 使我们进入目标容器内部，进入容器后就可以使用相关的命令了。下面我们通过 ifconfig 查看容器内网络设备以及通过 tcpdump 命令一抓包查看是否有请求进入容器的操作示例：
node4:➜ ~ |>docker run -it --net container:a2ba0b7db5a5 nicolaka/netshoot [~]
dP dP dP
88 88 88
88d888b. .d8888b. d8888P .d8888b. 88d888b. .d8888b. .d8888b. d8888P
88' `88 88ooood8 88 Y8ooooo. 88' `88 88' `88 88' `88 88
88 88 88. ... 88 88 88 88 88. .88 88. .88 88
dP dP `88888P' dP `88888P' dP dP `88888P' `88888P' dP
Welcome to Netshoot! (github.com/nicolaka/netshoot)
my-pod-7647db59f5-vcdzn ~ ifconfig
eth0 Link encap:Ethernet HWaddr 6A:A1:BD:16:29:85
inet addr:10.233.67.129 Bcast:0.0.0.0 Mask:255.255.255.255
UP BROADCAST RUNNING MULTICAST MTU:9001 Metric:1
RX packets:599624 errors:0 dropped:0 overruns:0 frame:0
TX packets:737437 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:0
RX bytes:161261874 (153.7 MiB) TX bytes:295757144 (282.0 MiB)
lo Link encap:Local Loopback
inet addr:127.0.0.1 Mask:255.0.0.0
UP LOOPBACK RUNNING MTU:65536 Metric:1
RX packets:228767 errors:0 dropped:0 overruns:0 frame:0
TX packets:228767 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:22301724 (21.2 MiB) TX bytes:22301724 (21.2 MiB)
// 抓包
mypod-7647db59f5-vcdzn ~ tcpdump -s0 -Xvn -i eth0 tcp port 13001
tcpdump: listening on eth0, link-type EN10MB (Ethernet), snapshot length 262144 bytes
22:56:43.071099 IP (tos 0x0, ttl 63, id 58997, offset 0, flags [DF], proto TCP (6), length 60)
10.233.65.136.56160 > 10.233.67.129.13001: Flags [S], cksum 0xfeca (correct), seq 938442090, win 62377, options [mss 8911,sackOK,TS val 4022397520 ecr 0,nop,wscale 7], length 0
0x0000: 4500 003c e675 4000 3f06 ba6b 0ae9 4188 E..<.u@.?..k..A.
0x0010: 0ae9 4381 db60 32c9 37ef 7d6a 0000 0000 ..C..`2.7.}j....
0x0020: a002 f3a9 feca 0000 0204 22cf 0402 080a ..........".....
0x0030: efc0 ea50 0000 0000 0103 0307 ...P........
22:56:43.071114 IP (tos 0x0, ttl 64, id 0, offset 0, flags [DF], proto TCP (6), length 60)
10.233.67.129.13001 > 10.233.65.136.56160: Flags [S.], cksum 0x9b09 (incorrect -> 0x4b72), seq 2068664002, ack 938442091, win 62293, options [mss 8911,sackOK,TS val 3323601777 ecr 4022397520,nop,wscale 7], length 0
0x0000: 4500 003c 0000 4000 4006 9fe1 0ae9 4381 E..<..@.@.....C.
0x0010: 0ae9 4188 32c9 db60 7b4d 4ec2 37ef 7d6b ..A.2..`{MN.7.}k
0x0020: a012 f355 9b09 0000 0204 22cf 0402 080a ...U......".....
0x0030: c61a 2371 efc0 ea50 0103 0307 ..#q...P....
22:56:43.071221 IP (tos 0x0, ttl 63, id 58998, offset 0, flags [DF], proto TCP (6), length 52)
10.233.65.136.56160 > 10.233.67.129.13001: Flags [.], cksum 0x88c7 (correct), ack 1, win 488, options [nop,nop,TS val 4022397520 ecr 3323601777], length 0
2.3 集群组件排错
如果是集群出错，我们需要查看控制节点和 worker 节点的各个组件是否正确。下面是一些基本的步骤供参考：
- 检查控制组件 api-server、etcd、scheduler、controller 是否启动成功，可以通过上面提到的 debug Pod 的方式以及检查 /etc/kubernetes/manifests/ 下的 yaml 文件是否有问题。
- 检查网络插件是否安装正确以及确保网络插件支持所需的特性。
- 检查 kube-proxy 是否部署配置正确。
- 检查 DNS 是否配置正确。
- 检查 kubelet 是否正常启动，可以通过 systemd status kubelet 命令查看 kubelet 的状态以及 journalctl -u kubelet | tail 命令查看 kubelet 的日志。
另外关于集群的基本信息，在 kube-public 命名空间下有 ConfigMap 记录，这里记录了基本的 Kubernetes server 信息，如果在节点变化时 server 信息没有及时同步，可以手动该这里的配置进行排错。
$ kubectl get cm -n kube-public
NAME DATA AGE
cluster-info 1 28d
总字数:3832字
